OQC 65

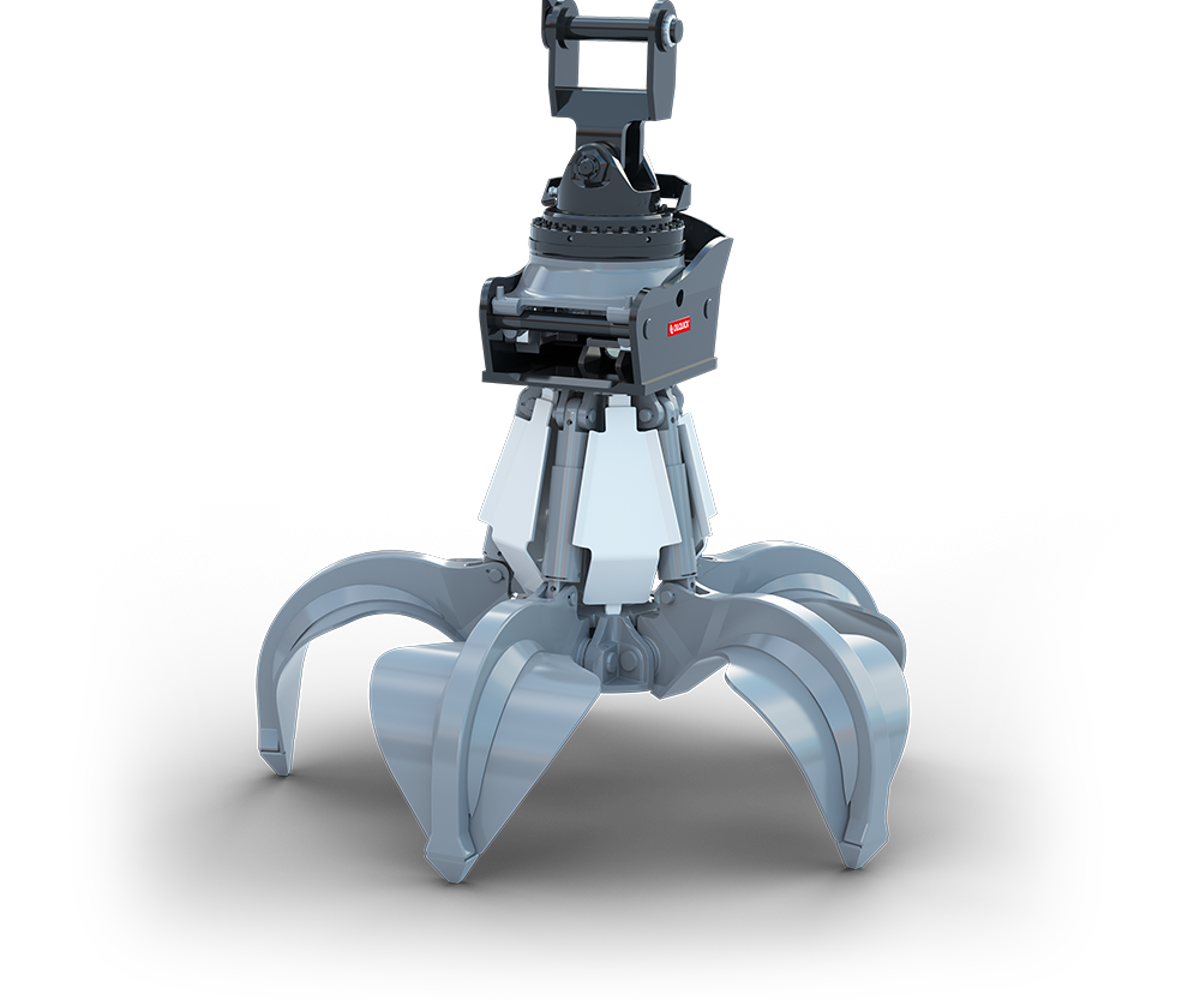

The OQC is an OilQuick suspended quick coupler, which is primarily designed for use on loading cranes and other handling equipment with lifting capacity up to 20 tons.
Why OQC?
- Hydraulic cylinder with double hose rupture valves. Full system pressure continuously applied to the locking bolts ensures that the attachments are locked securely in place without any play.
- Robust quick coupler made of high-grade steel.
- Wear-free OilQuick tool adapter.
- It only takes one cylinder movement to connect the hydraulic circuits automatically and lock the tools mechanically.
OQC 65
| Lifting capacity | |
| Coupler with rotator | 20 t |
| Tool adapter | 20 t |
| Rotator | Indexator XR400 |
| Max no. couplings | |
| 1” | - |
| 3/4” | 3 |
| 1/2” | 2 |
| 1/4” or 3/8” | - |
| Hydraulic passage rotary union | |
| 1” | - |
| 3/4” | 3 |
| 1/2” | - |
| 1/4” or 3/8” | - |
| Electrical coupling options | |
| 100A-3/4” | 1 |
| 100A-1/2” | 2 |
| 2p-25A-1/2” | 2 |
| 10p-5A-3/4” | 1 |
| 10p-5A-1/2” | 1 |
| Electrical passage slipring | |
| Indexator XR400 | 2x90A PWR, 1x50A GND |
OQC 65
| Lifting capacity | |
| Coupler with rotator | 20 t |
| Tool adapter | 20 t |
| Rotator | Indexator XR400 |
| Estimated weight | |
| Coupler | 230 kg |
| Rotator | 250 kg |
| Link | 130 kg |
| Tool adapter | 250 kg |
| Dimensions | |
| A | 441 mm |
| B | 602 mm |
| C | 530 mm |
| D | 802 mm |
| E | 690 mm |
| F | 635 mm |
| G | 504 mm |
