OQT 300i
OilQuick automatic quick coupler system, type OQT 300i is suitable for small forklift trucks in the weight class 1-3 t.
Why OQT?
Dirt guards
Robust dirt guards with a reliable opening mechanism protects the quick couplings when using mechanical attachments without OilQuick-function.
Hardened hook axels
Improves the couplers longivity and minimizes play.
Electrical connection
Power switch in compact design for valve control, lighting or similar.
OQT 300i
Imperial
Metric
| The quick coupler has one hydraulic cylinder | |
| Max. working pressure | 35 MPa |
| Load holding valve/check-valve | Yes |
| Piston/Piston rod, diameter | 45/25 mm |
| Stroke per cylinder side | 115 mm |
| Total closing force at 10 MPa | 16 kN |
| Max. continuous working pressure | 35 MPa |
| The non-spill steel couplings are of OilQuick type | ||
| Coupling sizes | 1/2" | |
| Oil flow at 0,03 MPa pressure loss | 60 L/min | |
| Max. continuous working pressure | 35 MPa | |
| No. of couplings | 6 | |
| Possible to use 1/2” electric coupling | Yes | |
| Size and location of quick couplings | |||
| Coupling 1-6 | 1/2" | ||
| The quick coupler has one hydraulic cylinder | |
| Max. working pressure | 5,080 Psi |
| Load holding valve/check-valve | Yes |
| Piston/Piston rod, diameter | 1.8"/ 1" |
| Stroke per cylinder side | 4.5" |
| Total closing force at 10 MPa | 2,320 Psi |
| Max. continuous working pressure | 5,080 Psi |
| The non-spill steel couplings are of OilQuick type | ||
| Coupling sizes | 1/2" | |
| Oil flow at 0,03 MPa pressure loss | 16 gal/min | |
| Max. continuous working pressure | 5,080 Psi | |
| No. of couplings | 6 | |
| Possible to use 1/2” electric coupling | Yes | |
| Size and location of quick couplings | |||
| Coupling 1-6 | 1/2" | ||
OQT 300i
Imperial
Metric

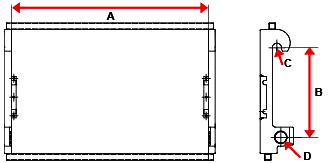

| Adapter data OQT 300i | |
| Attachment frame inner measurement (A) | 880 mm |
| Height (B) | 400 mm |
| Hooks diameter (C) | 41 mm |
| Locking plungers diameter (D) | 50 mm |
| Adapter data OQT 300i | |
| Attachment frame inner measurement (A) | 34.6" |
| Height (B) | 15.7" |
| Hooks diameter (C) | 1.6" |
| Locking plungers diameter (D) | 2" |
